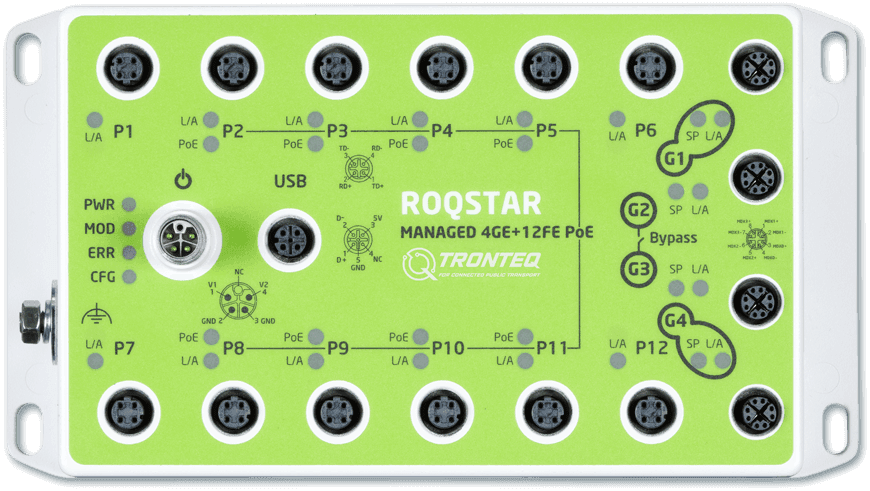

ROQSTAR 4GE+12FE M12 Managed Gigabit PoE Switch
Product number 006-130-125
Features
The ROQSTAR 4GE + 12FE M12 Managed Gigabit Switch was specially developed for applications in buses and trams. The management functions of this Layer 2 switch enable, among other things, network segmentation and monitoring. An easy-to-use web interface and a USB port are available for switch configuration. Furthermore, there is the option of partially automated configuration distribution within an IP network. The integrated NAT function (Layer 3) allows this switch to forward data traffic to different subnets. The integrated PoE power supply delivers up to 96W at 24 VDC to 8 Ethernet ports. A bypass relay ensures that data traffic is maintained in the event of a switch failure in the network. Housed in a metal housing, the M12 connectors ensure stable data transmission despite shock and vibrations that prevail in buses and rail vehicles.
✔️ Management functionalities for network segmentation
✔️ Enables redundant ring topology networks
✔️ PoE reduces installation times and costs
✔️ 10/100/1000 Mbit/s
✔️ PoE budget 96W, supply 24V, galvanically isolated
✔️ NAT
✔️ Auto deployment
✔️ OpenAPI
✔️ Web interface
✔️ ITxPT label
✔️ UNECE R10, R118 (E1)
✔️ EN 50155, EN 50121, EN 45545
Applications
Networks with Gigabit backbone
Backbone for passenger Wi-Fi
Backbone for CCTV
Real-time passenger information
Contactless payment systems
Passenger counting systems
