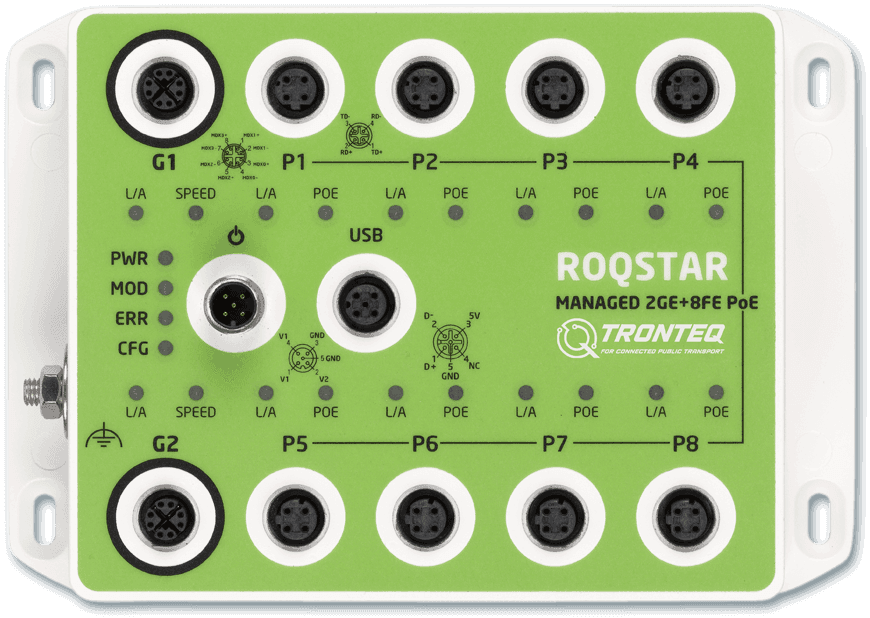

ROQSTAR 2GE+8FE M12 Managed Gigabit PoE Switch
Product number 006-130-118
Features
The ROQSTAR 2GE + 8FE M12 Managed Gigabit PoE Switch was specially developed for applications in buses and trams. The management functions of this Layer 2 switch enable, among other things, network segmentation and monitoring. An easy-to-use web interface and a USB port are available for switch configuration. Furthermore, there is the option of partially automated configuration distribution within an IP network. The integrated NAT function (Layer 3) allows this switch to forward data traffic to different subnets. The integrated PoE power supply delivers up to 80 W at 24 VDC to 8 Gigabit Ethernet ports. Housed in a metal housing, the M12 connectors ensure stable data transmission despite shock and vibrations that prevail in buses and rail vehicles.
✔️ Management functionalities for network segmentation
✔️ Enables redundant ring topology networks
✔️ PoE ensures shorter installation times and cost savings
✔️ 10/100/1000 Mbit/s
✔️ PoE budget 80W, supply 24V, galvanically isolated
✔️ NAT
✔️ Auto deployment
✔️ OpenAPI
✔️ Web interface
✔️ ITxPT label
✔️ UNECE R10, R118 (E1)
✔️ EN 50155, EN 50121, EN 45545
Applications
Networks with Gigabit backbone
Backbone for passenger Wi-Fi
Backbone for CCTV
Real-time passenger information
Contactless payment systems
Passenger counting systems
